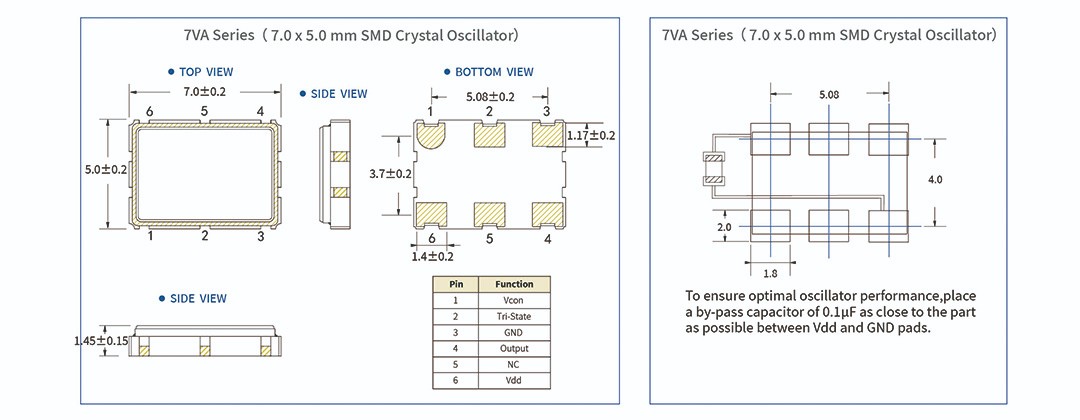

| Package Size: | 7.0×5.0×1.45 |
|---|---|
| Frequency Range: | 2.048 ~ 54 |
| Supply Voltage: | 3.3V |
| Temperature Range: | -20℃ ~ +70℃, -40℃ ~ +85℃ |
| Output Leve: | CMOS |
| FEATURES: | SPXO, High Stability |
| RoHS And Pb Free: | |
| Files Download: | Datasheet |
| Shopping: |   |
Item  | Symb.  | Min.  | Typ.  | Max.  | Unit  | Notes  |
Frequency Range  | Freq.  | 2.048  | 54.000  | MHz  | ||
Operating Temperature  | T_use  | -20  | +70  | ℃  | ||
-40  | +85  | ℃  | ||||
Storage Temperature Range  | T_stg  | -55  | +125  | ℃  | ||
Supply Voltage  | Vdd  | 2.97  | 3.3  | 3.63  | V  | |
Output Load  | L_CMOS  | 15  | pF  | |||
Current Consumption  | Icc  | 10  | mA  | 2.048MHz ≤ Freq. <36MHz  | ||
15  | mA  | 36MHz ≤ Freq. ≤ 54MHz  | ||||
Absolute Pull Range  | APR  | ±50  | ppm  | |||
Center Voltage  | Vcont  | 1.65  | V  | |||
Control Voltage Range  | Vc  | 0.3  | 3.0  | V  | ||
Linearity  | L  | 10  | %  | |||
Modulation Band Width  | MBW  | 15  | KHz  | |||
VC Input Impedance  | Rin  | 5  | MΩ  | |||
Duty Cycle  | SYM  | 45  | 55  | %  | 50 % Vdd level, L_CMOS ≤ 15 pF  | |
High output voltage  | VOH  | 0.9Vdd  | V  | |||
Low output voltage  | VOL  | 0.1Vdd  | V  | |||
Enable Voltage High (Logic 1)  | VIH  | 0.7Vdd  | V  | Output will be disable if OE is Logic 0 Output will be enable if OE is Logic 1 or open  | ||
Enable Voltage Low (Logic 0)  | VIL  | 0.3Vdd  | V  | |||
Rise / Fall Time  | TR / TF  | 5  | nS  | 10% Vdd to 90% Level  | ||
Start-up Time  | T_str  | 2  | mS  | To 90% of Final Amplitude  | ||
Aging  | f_age  | ±3  | ppm  | 1st. Year at 25℃  |
Operating Temperature Range  | Frequency Stability  | |
±25ppm  | ±50ppm  | |
-20℃ to +70℃  | ★  | ★  |
-40℃ to +85℃  | ▲  | ★  |
★:Available ▲:Conditional All condition*:Include 25℃ tolerance, operating temperature range , input voltage change,aging, load change.  | ||
  |
需求描述  | |||||||
Select the required package size, pin position and product series: 7.0×5.0mm;6pad;7VA Series Select the desired frequency: 24.000MHz Select the required supply voltage: 3.3V Select the required frequency tolerance(at 25℃): ±20ppm Select the desired operating temperature range: -40℃~+85℃ Select the desired frequency and temperature characteristics: ±30ppm The product you need is: 7VA Series 24.000MHz 3.3V ±20ppm@25℃ ±30ppm@-40~+85℃  | |||||||
| 標稱頻率[MHz] | |||||||
| 4.000 | 4.096 | 4.9152 | 6.000 | 7.3728 | 7.680 | 8.000 | 8.192 |
| 10.000 | 11.0592 | 11.2896 | 12.000 | 12.288 | 13.000 | 14.7456 | 16.000 |
| 16.384 | 18.432 | 19.200 | 19.440 | 20.000 | 22.5792 | 24.000 | 24.576 |
| 25.000 | 26.000 | 27.000 | 29.4912 | 30.000 | 32.000 | 32.768 | 33.000 |
| 40.000 | 45.1584 | 48.000 | 49.152 | 50.000 | 52.000 | 54.000 | |
