Frequency Range

Freq.

0.75

50.000

MHz

Operating Temperature

T_use

-20

+70

℃

-40

+85

℃

Storage Temperature Range

T_stg

-55

+125

℃

Supply Voltage

Vdd

0.8

1.2

2.0

V

Output Load

L_CMOS

15

pF

Current Consumption

Icc

1.5

mA

No load condition,Vdd=1.2V

0.75MHz ≤ Freq. ＜12MHz

1.7

No load condition,Vdd=1.2V

12MHz ≤ Freq. ＜24MHz

2.0

No load condition,Vdd=1.2V

24MHz ≤ Freq.  ≤50MHz

Duty Cycle

SYM

45

55

%

50 % Vdd level, L_CMOS ≤ 15 pF

Rise / Fall Time

TR / TF

5

nS

10% Vdd to 90% Level

Start-up Time

T_str

5

mS

To 90% of Final Amplitude

High output voltage

VOH

0.9Vdd

V

Low output voltage

VOL

0.1Vdd

V

Enable Voltage High (Logic 1)

VIH

0.7Vdd

V

Output will be disable if OE is Logic 0

Output will be enable if OE is Logic 1 or open

Enable Voltage Low (Logic 0)

VIL

0.3Vdd

V

Aging

f_age

±3

ppm

1st. Year at 25℃

±20ppm

±25ppm

±30ppm

±50ppm

-20℃ to +70℃

▲

★

★

★

-40℃ to +85℃

▲

★

★

★：Available    ▲：Conditional

All condition*：Include 25℃ tolerance, operating temperature range , input voltage change,aging, load change.

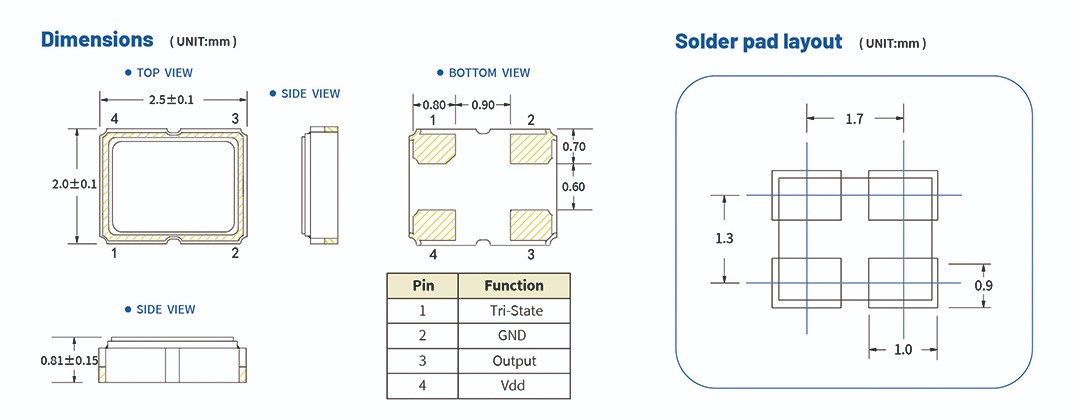

選擇需要的封裝規格及產品系列：   2.5×2.0mm；2CV Series

選擇需要的頻率：    25.000MHz

選擇需要的工作電壓：   1.2V

選擇需要的頻率精度（at 25℃）：   ±20ppm

選擇需要的工作溫度范圍：    -40℃~+85℃

選擇需要的頻率&溫度特性：  ±30ppm

您需要的產品是： 2CV Series 25.000MHz 1.2V ±20ppm@25℃ ±30ppm@-40~+85℃
