您當前所在位置：首頁 >MHz 石英晶體 >MHz 貼片石英晶體

: 1XMHz 貼片石英晶體

1X系列MHz貼片石英晶體，是現代緊湊型電子設備的核心節拍器。采用SMD2016封裝，提供16~54MHz的頻率選擇，具備±30ppm的頻率穩定性與6~20pF的可調負載電容，確保與各類芯片的精準匹配。憑借緊湊的貼片封裝與MHz級高頻精度，完美適配從高端消費電子到工業控制設備的廣泛需求，為微處理器、通信芯片等提供穩定、可靠的基準時鐘，保障系統同步與高效運行。

文檔預覽文檔下載

產品參數產品特點產品尺寸產品文件

產品系列：	1X

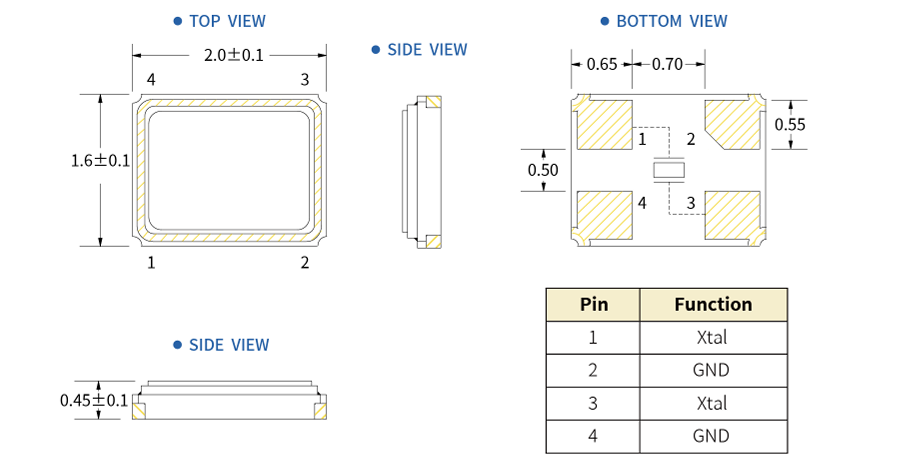

尺寸	2.0×1.6×0.45
封裝	SMD2016-4P
頻率范圍	16-54MHz
頻率公差	±10ppm
頻率穩定性	±30ppm
工作溫度	-40℃ to +85℃
負載電容[pF]	6 -20 pF
ESR（等效串聯電阻）	50 - 200 Ω

系列
型號
規格書
產品等級
尺寸
封裝
頻率
頻率公差
頻率穩定性
工作溫度
負載電容
ESR（等效串聯電阻）
安裝類型
產品狀態

1X
SX1B19.200F1010F30
—
2.0×1.6×0.45
SMD2016-4P
19.2MHz
±10ppm
±30ppm
-40℃ to +85℃
10pF
200Ω
Surface Mount
Active

1X
SX1B19.200F1010F30
—
2.0×1.6×0.45
SMD2016-4P
19.2MHz
±10ppm
±30ppm
-40℃ to +85℃
10pF
200Ω
Surface Mount
Active

1X
SX1B19.200F1010F30
—
2.0×1.6×0.45
SMD2016-4P
19.2MHz
±10ppm
±30ppm
-40℃ to +85℃
10pF
200Ω
Surface Mount
Active

1X
SX1B19.200F1010F30
—
2.0×1.6×0.45
SMD2016-4P
19.2MHz
±10ppm
±30ppm
-40℃ to +85℃
10pF
200Ω
Surface Mount
Active

1X
SX1B19.200F1010F30
—
2.0×1.6×0.45
SMD2016-4P
19.2MHz
±10ppm
±30ppm
-40℃ to +85℃
10pF
200Ω
Surface Mount
Active

1X
SX1B19.200F1010F30
—
2.0×1.6×0.45
SMD2016-4P
19.2MHz
±10ppm
±30ppm
-40℃ to +85℃
10pF
200Ω
Surface Mount
Active

1X
SX1B19.200F1010F30
—
2.0×1.6×0.45
SMD2016-4P
19.2MHz
±10ppm
±30ppm
-40℃ to +85℃
10pF
200Ω
Surface Mount
Active

1X
SX1B19.200F1010F30
—
2.0×1.6×0.45
SMD2016-4P
19.2MHz
±10ppm
±30ppm
-40℃ to +85℃
10pF
200Ω
Surface Mount
Active

1X
SX1B19.200F1010F30
—
2.0×1.6×0.45
SMD2016-4P
19.2MHz
±10ppm
±30ppm
-40℃ to +85℃
10pF
200Ω
Surface Mount
Active

1X
SX1B19.200F1010F30
—
2.0×1.6×0.45
SMD2016-4P
19.2MHz
±10ppm
±30ppm
-40℃ to +85℃
10pF
200Ω
Surface Mount
Active

1X
SX1B19.200F1010F30
—
2.0×1.6×0.45
SMD2016-4P
19.2MHz
±10ppm
±30ppm
-40℃ to +85℃
10pF
200Ω
Surface Mount
Active

1X
SX1B19.200F1010F30
—
2.0×1.6×0.45
SMD2016-4P
19.2MHz
±10ppm
±30ppm
-40℃ to +85℃
10pF
200Ω
Surface Mount
Active

1X
SX1B19.200F1010F30
—
2.0×1.6×0.45
SMD2016-4P
19.2MHz
±10ppm
±30ppm
-40℃ to +85℃
10pF
200Ω
Surface Mount
Active

1X
SX1B19.200F1010F30
—
2.0×1.6×0.45
SMD2016-4P
19.2MHz
±10ppm
±30ppm
-40℃ to +85℃
10pF
200Ω
Surface Mount
Active

1X
SX1B19.200F1010F30
—
2.0×1.6×0.45
SMD2016-4P
19.2MHz
±10ppm
±30ppm
-40℃ to +85℃
10pF
200Ω
Surface Mount
Active

1X
SX1B19.200F1010F30
—
2.0×1.6×0.45
SMD2016-4P
19.2MHz
±10ppm
±30ppm
-40℃ to +85℃
10pF
200Ω
Surface Mount
Active

1X
SX1B19.200F1010F30
—
2.0×1.6×0.45
SMD2016-4P
19.2MHz
±10ppm
±30ppm
-40℃ to +85℃
10pF
200Ω
Surface Mount
Active

1X
SX1B19.200F1010F30
—
2.0×1.6×0.45
SMD2016-4P
19.2MHz
±10ppm
±30ppm
-40℃ to +85℃
10pF
200Ω
Surface Mount
Active

1X
SX1B19.200F1010F30
—
2.0×1.6×0.45
SMD2016-4P
19.2MHz
±10ppm
±30ppm
-40℃ to +85℃
10pF
200Ω
Surface Mount
Active

1X
SX1B19.200F1010F30
—
2.0×1.6×0.45
SMD2016-4P
19.2MHz
±10ppm
±30ppm
-40℃ to +85℃
10pF
200Ω
Surface Mount
Active

1X
SX1B19.200F1010F30
—
2.0×1.6×0.45
SMD2016-4P
19.2MHz
±10ppm
±30ppm
-40℃ to +85℃
10pF
200Ω
Surface Mount
Active

1X
SX1B19.200F1010F30
—
2.0×1.6×0.45
SMD2016-4P
19.2MHz
±10ppm
±30ppm
-40℃ to +85℃
10pF
200Ω
Surface Mount
Active

1X
SX1B19.200F1010F30
—
2.0×1.6×0.45
SMD2016-4P
19.2MHz
±10ppm
±30ppm
-40℃ to +85℃
10pF
200Ω
Surface Mount
Active

1X
SX1B19.200F1010F30
—
2.0×1.6×0.45
SMD2016-4P
19.2MHz
±10ppm
±30ppm
-40℃ to +85℃
10pF
200Ω
Surface Mount
Active

1X
SX1B19.200F1010F30
—
2.0×1.6×0.45
SMD2016-4P
19.2MHz
±10ppm
±30ppm
-40℃ to +85℃
10pF
200Ω
Surface Mount
Active

1X
SX1B19.200F1010F30
—
2.0×1.6×0.45
SMD2016-4P
19.2MHz
±10ppm
±30ppm
-40℃ to +85℃
10pF
200Ω
Surface Mount
Active

1X
SX1B19.200F1010F30
—
2.0×1.6×0.45
SMD2016-4P
19.2MHz
±10ppm
±30ppm
-40℃ to +85℃
10pF
200Ω
Surface Mount
Active

1X
SX1B19.200F1010F30
—
2.0×1.6×0.45
SMD2016-4P
19.2MHz
±10ppm
±30ppm
-40℃ to +85℃
10pF
200Ω
Surface Mount
Active

1X
SX1B19.200F1010F30
—
2.0×1.6×0.45
SMD2016-4P
19.2MHz
±10ppm
±30ppm
-40℃ to +85℃
10pF
200Ω
Surface Mount
Active

1X
SX1B19.200F1010F30
—
2.0×1.6×0.45
SMD2016-4P
19.2MHz
±10ppm
±30ppm
-40℃ to +85℃
10pF
200Ω
Surface Mount
Active

1X
SX1B19.200F1010F30
—
2.0×1.6×0.45
SMD2016-4P
19.2MHz
±10ppm
±30ppm
-40℃ to +85℃
10pF
200Ω
Surface Mount
Active

1X
SX1B19.200F1010F30
—
2.0×1.6×0.45
SMD2016-4P
19.2MHz
±10ppm
±30ppm
-40℃ to +85℃
10pF
200Ω
Surface Mount
Active

1X
SX1B19.200F1010F30
—
2.0×1.6×0.45
SMD2016-4P
19.2MHz
±10ppm
±30ppm
-40℃ to +85℃
10pF
200Ω
Surface Mount
Active

1X
SX1B19.200F1010F30
—
2.0×1.6×0.45
SMD2016-4P
19.2MHz
±10ppm
±30ppm
-40℃ to +85℃
10pF
200Ω
Surface Mount
Active

1X
SX1B19.200F1010F30
—
2.0×1.6×0.45
SMD2016-4P
19.2MHz
±10ppm
±30ppm
-40℃ to +85℃
10pF
200Ω
Surface Mount
Active

1X
SX1B19.200F1010F30
—
2.0×1.6×0.45
SMD2016-4P
19.2MHz
±10ppm
±30ppm
-40℃ to +85℃
10pF
200Ω
Surface Mount
Active

1X
SX1B19.200F1010F30
—
2.0×1.6×0.45
SMD2016-4P
19.2MHz
±10ppm
±30ppm
-40℃ to +85℃
10pF
200Ω
Surface Mount
Active

1X
SX1B19.200F1010F30
—
2.0×1.6×0.45
SMD2016-4P
19.2MHz
±10ppm
±30ppm
-40℃ to +85℃
10pF
200Ω
Surface Mount
Active

1X
SX1B19.200F1010F30
—
2.0×1.6×0.45
SMD2016-4P
19.2MHz
±10ppm
±30ppm
-40℃ to +85℃
10pF
200Ω
Surface Mount
Active

1X
SX1B19.200F1010F30
—
2.0×1.6×0.45
SMD2016-4P
19.2MHz
±10ppm
±30ppm
-40℃ to +85℃
10pF
200Ω
Surface Mount
Active

1X
SX1B19.200F1010F30
—
2.0×1.6×0.45
SMD2016-4P
19.2MHz
±10ppm
±30ppm
-40℃ to +85℃
10pF
200Ω
Surface Mount
Active

1X
SX1B19.200F1010F30
—
2.0×1.6×0.45
SMD2016-4P
19.2MHz
±10ppm
±30ppm
-40℃ to +85℃
10pF
200Ω
Surface Mount
Active

1X
SX1B19.200F1010F30
—
2.0×1.6×0.45
SMD2016-4P
19.2MHz
±10ppm
±30ppm
-40℃ to +85℃
10pF
200Ω
Surface Mount
Active

1X
SX1B19.200F1010F30
—
2.0×1.6×0.45
SMD2016-4P
19.2MHz
±10ppm
±30ppm
-40℃ to +85℃
10pF
200Ω
Surface Mount
Active

1X
SX1B19.200F1010F30
—
2.0×1.6×0.45
SMD2016-4P
19.2MHz
±10ppm
±30ppm
-40℃ to +85℃
10pF
200Ω
Surface Mount
Active

1X
SX1B19.200F1010F30
—
2.0×1.6×0.45
SMD2016-4P
19.2MHz
±10ppm
±30ppm
-40℃ to +85℃
10pF
200Ω
Surface Mount
Active

1X
SX1B19.200F1010F30
—
2.0×1.6×0.45
SMD2016-4P
19.2MHz
±10ppm
±30ppm
-40℃ to +85℃
10pF
200Ω
Surface Mount
Active

1X
SX1B19.200F1010F30
—
2.0×1.6×0.45
SMD2016-4P
19.2MHz
±10ppm
±30ppm
-40℃ to +85℃
10pF
200Ω
Surface Mount
Active

1X
SX1B19.200F1010F30
—
2.0×1.6×0.45
SMD2016-4P
19.2MHz
±10ppm
±30ppm
-40℃ to +85℃
10pF
200Ω
Surface Mount
Active

1X
SX1B19.200F1010F30
—
2.0×1.6×0.45
SMD2016-4P
19.2MHz
±10ppm
±30ppm
-40℃ to +85℃
10pF
200Ω
Surface Mount
Active

1X
SX1B19.200F1010F30
—
2.0×1.6×0.45
SMD2016-4P
19.2MHz
±10ppm
±30ppm
-40℃ to +85℃
10pF
200Ω
Surface Mount
Active

1X
SX1B19.200F1010F30
—
2.0×1.6×0.45
SMD2016-4P
19.2MHz
±10ppm
±30ppm
-40℃ to +85℃
10pF
200Ω
Surface Mount
Active

1X
SX1B19.200F1010F30
—
2.0×1.6×0.45
SMD2016-4P
19.2MHz
±10ppm
±30ppm
-40℃ to +85℃
10pF
200Ω
Surface Mount
Active

advantages 公司優勢

: 源頭廠家23年元老級企業
自2003年創立，擁有河源國家級高新產業園11,000㎡萬級凈化工廠，實現晶片切割→鍍膜→封焊全鏈自主生產，年產能超3.6億顆，通過ISO 9001/14001、IATF 16949車規認證，獲評國家高新技術企業、專精特新企業。

: 品質優勢軍工級品控，極限驗證
15項國家專利，掌握離子刻蝕微調/真空封焊核心技術，IATF16949體系認證，通過AEC-Q200車規測試，通過三重可靠性測試，溫度沖擊（-55℃↔125℃）/機械振動/96h鹽霧，全流程SPC管控，不良率＜0.02%。

: 定制優勢敏捷響應，全場景覆蓋
智能電網抗干擾/醫療設備低相噪等12類場景方案，15項國家專利，支持25~200MHz全頻段客制化，全系符合RoHS/REACH指令，提供SGS環保報告，可降解封裝材料（PLA基），助力客戶ESG評級提升，低相噪振蕩器（-149dBc/Hz），滿足生命監護設備時序精度。

: 服務優勢全球網絡，終身護航
免費提供《晶振選型白皮書》，降低客戶開發成本30%，F(xiàn)AE團隊24小時響應，電路匹配測試/失效分析，物流服務48小時全球發貨珠三角次日達，歐美亞海外倉直達。
